3D Printing Resin and Supporting Materials
Ⅰ. The viscosity of casting 3D printing resin casting binder is low, the nozzle will not be blocked after long-term use, and the stability is good.
Ⅱ. The addition amount of 3D printing resin casting binder and curing agent is 1.2%-2.0% and 0.2%-0.6% of the weight of sand, which has a fast curing speed and reduces material costs.
Ⅲ. Casting 3D printing resin has good stability and long shelf life.
Package Specification: 25kg/ iron drum
Shelf Life: 12 months
Production Cycle: 7-10 days
Supporting Hardener: HW series hardener
- Information
3D Printing Resin and Supporting Materials
| Model | Appearance | Density (20℃) g/cm³ | Viscosity (20℃) mPa.s | Free Formaldehyde (%) | PH | Granularity Um |
| SQ3D200 | Brownish red transparent liquid | 1.10-1.20 | 9.50-10.5 | ≤0.1 | 6.0-7.5 | ≤0.5 |
| 200D | Brownish red clear solution | 1.10-1.20 | 10.0-15.0 | ≤0.1 | 6.0-7.5 | ≤0.5 |
| 200DPlus | Brownish red clear solution | 1.10-1.20 | 10.0-14.0 | ≤0.1 | 6.0-7.5 | ≤0.5 |
| Curing Agent Model | Appearance | Density (20℃) g/cm³ | Viscosity (20℃) ≤mPa.s | Total Acid (%) |
| GS3D200 | Light Yellow Transparent Liquid | 1.20~1.30 | ≤15 | 18-20 |
| GS3D260 | Light Yellow Transparent Liquid | 1.20~1.30 | ≤20 | 24-27 |
| GS3D270 | Light Yellow Transparent Liquid | 1.20~1.30 | ≤20 | 26-29 |
Casting binder
| Cleaning Agent Model | Appearance | Density (20℃) g/cm³ | Viscosity (20℃) ≤mPa.s | PH | Ignition Point (℃) | Shelf Life |
| R200 | Light Blue Clear Liquid | 1.0-1.1 | ≤10 | ≤8 | ≥100 | 6 Months |
Introduction

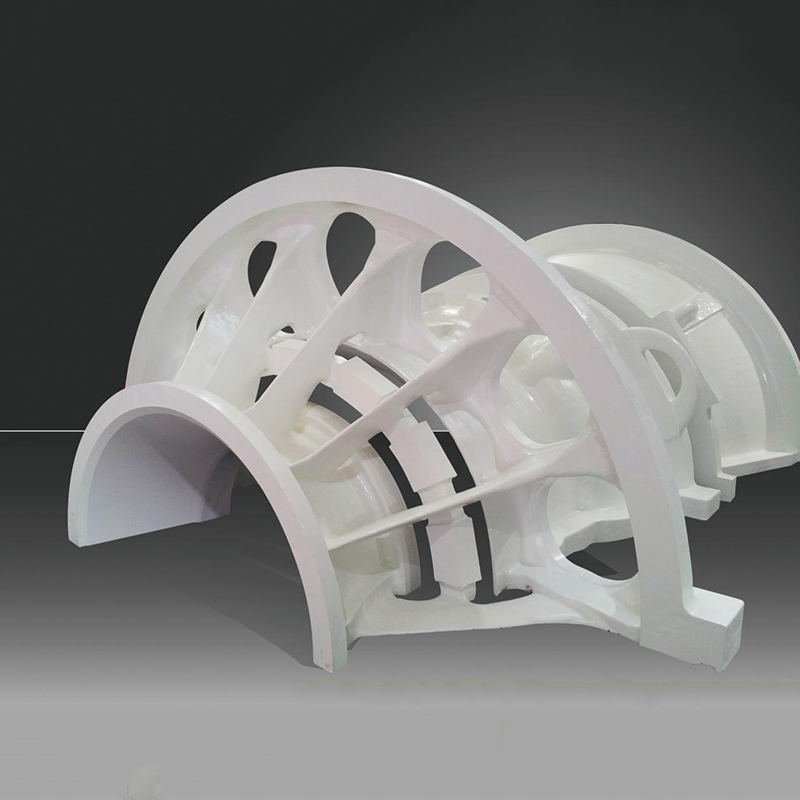

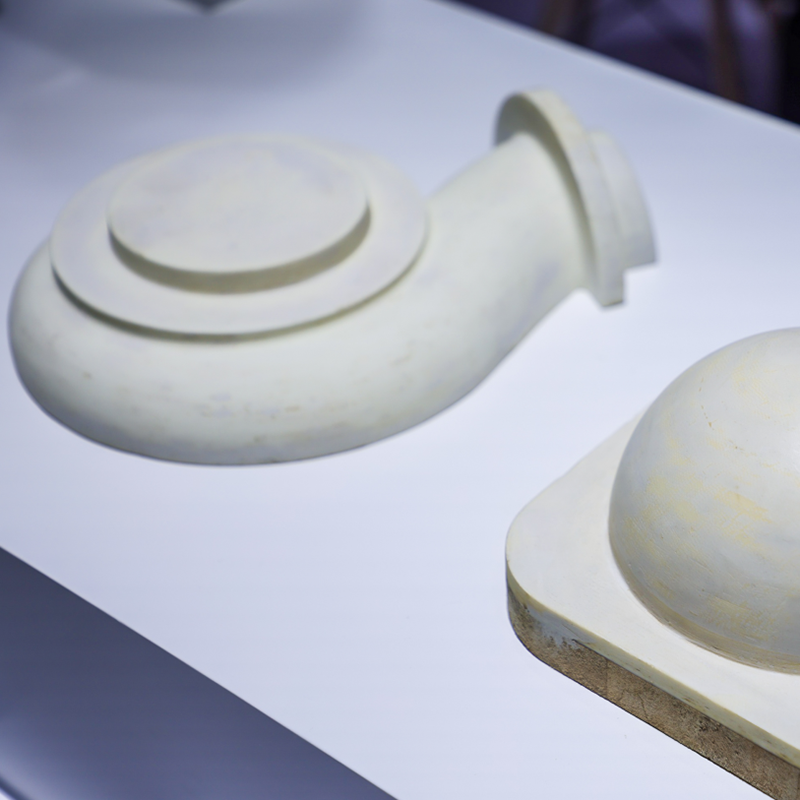

With the rapid advancement of 3D printing technology, casting processes have undergone a significant transformation. Now widely adopted across the industry, this technology is complemented by our casting 3D printing resin and supporting materials, which include furan resin, a curing agent, and a cleaning agent. These products meet international advanced standards and have already seen broad application. 3D printing resin casting binder is widely used in scenes such as cast steel, cast iron, cast aluminum, high-temperature alloys, and complex castings. After the curing agent and sand are mixed evenly, the printer first spreads sand (recommended sanding thickness 0.3-0.5mm), and then sprays on the sand layer, curing layer by layer to form a core.
Features
• Once cured, the core strength of the 3D printing resin casting binder is exceptionally high, making it ideal for applications such as cast steel, high-temperature alloys, and the production of complex castings.
• Offering high strength and rapid curing, the 3D printing resin casting binder requires only a minimal amount of resin and curing agent, making it both efficient and cost-effective.
• Designed with environmental considerations in mind, the casting 3D printing resin casting binder features low levels of harmful substances, minimal odor, and reduced emissions.
